Build Definitions

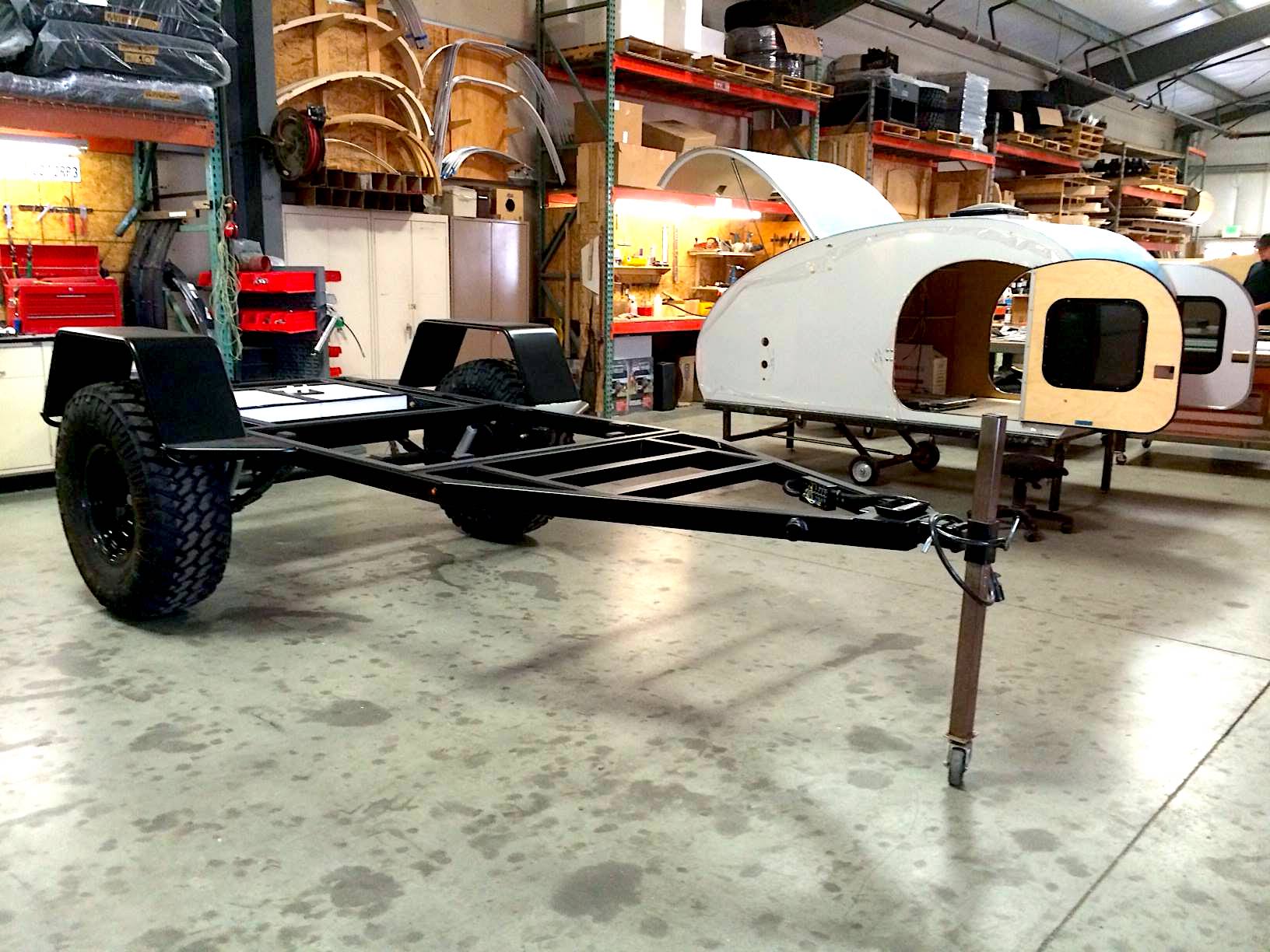

Chassis:

  • Frame Construction
    • 2”x2”x0.09”Wall Square Tube welded assembly for Road and Cross Over Chassis
    • 2”x3”x0.13”Wall Rectangular Tube welded assembly for Off-Road and Extreme Off-Road chassis
    • 14 L-Bracket cabin mounts
    • Fenders – Round for Road packages
    • Fenders – Rectangular for Cross Over & Off-Road packages
    • Fenders – Tubular Rectangular for Extreme Off-Road package
      • Note: Tubular Fenders are an option for Off-Road package
    • Rear Hatch Latch bracket (not available for 408-Buzzard)
    • Receiver front tube
    • Receiver Rear tube
    • Sandblasted & coated for environment conditioning
    • Stabilizer Jack with Foot tongue location
    • Standard Triangled Tongue
    • Optional – Extended Tongue adds 16 inches to overall length (Standard for Extreme Off-Road package)
    • Optional – 1-1/4” side receivers for accessories (Standard for both Off-Road and Extreme Off-Road packages)
    • Optional – Rear Stabilizer Jack circular receivers (Standard for both Off-Road and Extreme Off-Road packages)
    • Optional – 2nd front Stabilizer Jack circular receiver (Standard for both Off-Road and Extreme Off-Road packages)
    • Optional – Diamond plated floor (requires extended tongue to be installed)
    • Optional – Under chassis spare tire mount
    • Optional – Rear Bump Rails
    • Optional – Pneumatic Tire for Stabilizer
    • Optional – Plastic wheel for stabilizer
  • Suspension
    • 2000lb Leaf Spring Straight Axle up to 4.5’ wide chassis
    • 3500lb Leaf Spring Straight Axle starting with 5’ wide chassis
    • 15” Rims and Road Tires for Road Package (26” tire size)
    • 15” Rims and ALT Tires for Cross Over and Off-Road packages (26 to 30” tire sizes)
    • 16 to 17” Rims and Mudd Tires for Extreme Off-Road Packages (can accommodate up to 40” tires)
      • Note: 16” Rims and Mudd Tires are optional for Off-Road package
    • 2 Safety Chains
    • Baby Moon Hubcaps for Road Models only
    • Optional – Shocks (Standard for Extreme Off-Road package)
    • Optional – Electrical brakes (only available with 3500lb axle package)
    • Optional – Brake Controller
    • Optional – Safety Breakaway system
    • Optional – Airbag shock system only available with Extreme Off-Road package (require tongue box for air compressor, reservoir, and plumbing)
  • Electrical
    • Lights – Running Side markers, Brake Lights, Turn Signal, Reverse and Emergency
      • Note: for round fenders Brake/Turn/Emergency/Reverse are located on fender facing AFT
    • Hitch – 7-Pin Wire Harness
    • Optional – Pre-wired for Solar System
    • Optional – Pre-wired for 110v shore power
    • Optional – Ground Lights
    • Optional – Wiring harness and connectors for Airbag system

Cabin:

  • Frame Construction
    • 9 & 13 Ply Baltic Birch for floor, walls, ceiling, doors and hatch
    • UV Lacquer is applied twice to all pieces
    • 1” Foam Insulation installed in ceiling and flooring giving a R8 cabin value
    • 4” memory, tri-folder, foam mattress (Full & Queen is dependent on chassis width)
    • Hinges are aircraft aluminum
    • Seams are silicone adhered with Aluminum flashing all around exterior
    • Skins are aircraft anodized aluminum
    • Trims are aircraft aluminum and fastened with Stainless Steel hardware
    • Weather stripping “P” and “D” seals used for all open exposed areas
    • Optional – Roof Top Tent access hatch (requires vent fan relocation)
    • Optional – Skylight in front bulkhead
    • Optional – 7” Side Fans
    • Optional – Side Portal Windows
    • Optional – Rock Guard Skin on forward bulkhead
  • Doors, 2 ea (Exception for 408-Buzzard has one door)
    • 12”x18”x1.0” Sliding Window with Bug Screen for each side
      • Note: 408 Buzzard 2nd window is mounted on wall on drive side
    • Pull Latch interior locking
    • Stiffener brace pull handle
    • Curtain Rod Clips and Bungee Cord
    • Outer Edge Seal
    • Inner Cabin Wall Edge Trim
    • Hinge, Aluminum
    • Optional – Double Edge Door Seal (Standard for both Off-Road and Extreme Off-Road packages)
    • Optional – 2nd Door for 408-Buzzrd
  • Electrical
    • 7” Vent Fan, Ceiling mounted
    • 12v Circuit Breaker Panel
    • Battery Charger for Group 24 Battery
    • Done Light, Ceiling
    • Group 24 Battery, 100AMH, AGM
    • Light Bar, Hatch
    • Shore Power switch
    • License Plate mount with Light
    • Optional – 14” Vent Fan
    • Optional – SCT Battery bracket
    • Optional – Generator Outlet either interior, and or, exterior
    • Optional – Gooseneck Reading Lights (2ea)
    • Optional – Group 31, 100amh, AGM Battery
    • Optional – License Plate mount with LED Light
    • Optional – Lithium Battery, 100amh
    • Optional – Premium Interior Lights (Includes 2 dome lights and Gooseneck Reading Lights)
    • Optional – Porch Lights
    • Optional – Watson Battery Monitor
    • Optional – Pre-wired solar system includes:
      • 500w, Pure Sign, 12v to 110v, Inverter
      • MPPT Charger
      • Power Resource Switch
      • Exterior Solar Panel Outlets
      • Wiring Harness
    • Optional – Cooler Combo ref/frz 30 to 50 qt
    • Optional – 1.5cubic inch capacity Dorm style ref/frz
  • Galley Hatch (excluding 408-Buzzard)
    • 9 & 13 Ply Baltic Birch for ribs, stringers, and interior skin
    • UV Lacquer is applied twice to all pieces
    • 1” Foam Insulation installed in hatch pockets giving a R8 cabin value
    • Hinges are aircraft aluminum
    • L-Handle Lockable latch
    • Seams are silicone adhered with Aluminum flashing all around exterior
    • Skins are aircraft anodized aluminum
    • Trims are aircraft aluminum and fastened with Stainless Steel hardware
    • Weather stripping “P” and “D” seals used for all open exposed areas

Cabinetry:

  • Interior
    • Upper Shelves
    • Mid-Section countertop
    • Lower and beneath shelves
    • LR/LH Cup holders
    • Optional – Upper Flip Down Doors
    • Optional – Mid-Section Doors
    • Optional – Lower Flip Down Doors
    • Optional – Marine Style (Standard for Extreme Off-Road package)
    • Optional – Headboard with cubbies
    • Optional – Flip Down Bunk Bed (front, and or, rear bulkheads)
    • Optional – Bedside headboard flip down shelves
    • Optional – Pass thru screen, and or, door
  • Galley
    • Countertop – Laminated wood print
    • Drawer – beneath cooktop
    • Pocket – behind cooktop
    • Upper shelve
    • Mid-Section pockets
    • Mid-Section Pass thru
    • Optional – Marine style (dependent on road package, but standard for Extreme Off-Road Package)
      • 4’ wide chassis Beneath Cooktop 2 drawers
      • 5’ wide chassis Under countertop full set of drawers
    • Optional – Mid-Section Drawers
    • Optional – Pass thru screen, and or, door
    • Optional – Side pantry slide shelve (not available for Marine full set cabinetry)
    • Optional – Cooler Combo Side Slide and Tray (Only 4’ wide chassis)
    • Optional – Cooler Combo Lengthwise Slide Tray (Only for 5’ wide chassis)
    • Optional – Rear extended mobile countertop
    • Optional – Side mounted mobile countertop
  • Electrical
    • Interior Electronic Panel – Radio, Bluetooth, 12v
    • Interior Electronic Panel – 12v outlet
    • Interior Electronic Panel – USB outlets, 2ea
    • Interior Electronic Panel – Light Switches
    • Interior Electronic Panel – Voltmeter
    • Galley Speakers
    • Optional – 12v Outlet either interior or galley or both
    • Optional – 110v Outlet either interior or galley or both

Gas:

  • Cooktop, 2-Burner cooktop
  • 18” Propane hose with regulator
  • Optional – 5lb Propane tank (requires exterior wall mounting bracket)
  • Optional – 10lb Propane tank (require exterior wall mounting bracket)
  • Optional – 5lb Exterior Propane Mounting Tubular Cage
  • Optional – 10lb Exterior Propane Mounting Tubular Cage
  • Optional – Mobile grill (requires 1-1/4” auxiliary receiver mounting post)
  • Optional – Propane plumbing for Tankless Hot Water Tank

HVAC:

  • Hard install 6,500 btu propane furnace
  • Hard install AC/Heating unit 10,500 btu
  • Mobile AC unit 2,300 btu unit

Storage:

  • Optional – Expanded Metal Cage with Locking Lid (requires extended tongue if including tongue box)
  • Optional – Tongue Box (require extended tongue if including expanded metal cage or side wings)
  • Optional – Expanded Metal Side Wings (requires extended tongue)
  • Optional – MAC Tie Downs (1 set)
  • Optional – Roof Top Basket (requires mounting brackets)
  • Optional – Roof Top Flat Rack (requires mounting brackets)
  • Optional – Roof Top Cross Bars (require mounting brackets)
  • Optional – Under Mattress storage bin

Water:

  • Optional – 15 to 19 gallon freshwater tank system for 4’ wide chassis with SAGVIC valve
  • Optional – 19 to 30 gallon freshwater tank system for 5’ wide chassis with SAGVIC valve
  • Optional – 19 Gallon freshwater tank with hand pump (mounted in front of forward bulkhead)
  • Optional – 1.4 Gal/Min Tankless Hot Tank with metal cabinet
  • Optional – 5 gal Cassette toilet
  • Optional – RotoPax freshwater Jerry Can
  • Optional – Side mounted sink

Accessories:

  • 110v Interior 4 plug Outlet extension
  • Dolly, Tear Drop
  • Hitch – Max Coupler Articulating Hitch system
  • Removable 40” Round Café Table
  • RotoPax Fuel Jerry Can
  • RotoPax First Aide Kit
  • SCIPIO Annex
  • SCIPIO Awning
  • SCIPIO Flag Pole Holder
  • SCIPIO Ladder
  • SCIPIO Paper Towel Holder
  • SCIPIO Storage tote
  • Suitcase 100w, 12v solar panels, includes 20amp Charge Controller
  • Trasharoo – Spare Mounted Trash bag
  • Outer Limit First Aide Kit, 6500 Series
  • Outer Limit First Aide Kit, 6000 Series
